Evidence on performance
Nuremberg, Germany
Danish EMIL Project
San Diego, US
Local towns, UK
Gaps and weaknesses


Nuremberg, Germany

Context
Hass-Klau et al (1992) describe the process of traffic calming measures implemented in Nuremberg. Nuremberg was one of the first towns in Germany which decided upon large-scale pedestrianisation schemes in 1972. During the 1980s, pedestrianisation was extended step by step, and a large number of city centre streets were traffic calmed. However, it was still possible to cross the town centre by car in an east-west direction and vice versa, so the city decided to close the east-west route in 1988.

By the end of the 1980s it was still possible to travel through the town centre in a north-south direction and vice versa. The 1991 plan determined that no motor vehicle traffic through the centre would be possible. But the results of the 1991 plan have not been reported.

Impacts on demand
When the pedestrianisation scheme opened in 1972, 80% of the motor vehicle traffic disappeared and could not be accounted for in parallel streets. After the road closure in 1988, motor vehicle counts in parallel streets revealed that 29%, had transferred to these streets, and 71% of the traffic had disappeared.

Nuremberg started with a very large pedestrianisation scheme. When it become clear that little increase in traffic flows occurred in the parallel roads, the city become more and more confident over the years that a substantial reduction in motor vehicle traffic in the city centre, and also in some of the inner city areas, was the right way forward.

Impacts on supply
The objectives for supply side in the 1991 plan were:

  • creation of five traffic cells;
  • further increase in pedestrianisation;
  • reduction of car parking spaces for non-residents;
  • increase in residents parking;
  • 30km/h speed limit everywhere in the city centre;
  • increase of car parking charges from 1DM to 5DM per hour (about £ 2 at 1991 prices)

Contribution to objectives

Objectives

Comment

Efficiency

The road closures should have reduced efficiency for car use (though it appears that most traffic has disappeared). Pedestrianisation and cycle lanes would have improved efficiency of cycling and walking.

Liveable streets

An increase by walking and cycling and a reduction in vehicle traffic will have improved liveability.

Protection of the environment

No estimation has been made, but the reduction in vehicle traffic should have reduced air and noise pollution.

Equity and social inclusion

During the 1980s, a lot of progress was made in building cycle facilities and Nuremberg has an excellent cycle network and a relatively large number of cyclists (11% of the flow in the city centre).

Safety

Pedestrianisation and cycle lanes should have improved safety for pedestrians and cyclists.

Economic growth

In the road closures of 1988, the traders claimed that they would lose trade. They actually lost on average about 20% of their turnover. However, in the 1991 plan the traders have understood that restricting private cars is necessary, and even good for business (Hass-Klau et al, 1992). By providing a more attractive location, economic activity will have improved.

Finance

No evidence regarding costs.


Danish EMIL Project

Context
Hass-Klau et al (1992) report the EMIL Project in Denmark, initiated by the Danish Road Directorate. (The acronym EMIL is derived from Effects of Through Traffic with Milieu Priority.) This project aimed at relieving the negative effects of through traffic in small towns. Three possible solutions for small towns were identified: constructing a bypass; designing a through traffic road with motor vehicle priority and planning an environmentally friendly through road.

The subject of the project was the ‘environmentally adapted through road’, which also included a close monitoring of the effects of the implemented traffic calming measures. Three towns were chosen, representing different problems of small towns with through traffic. In Vinderup (3,000 inhabitants) the through road is also the shopping streets of the town, in Skaerbaek (4,000 inhabitants) the through road intersects the shopping street and in Ugerlose (1,000 inhabitants) the through road takes a more winding route.

The measures used differed slightly from town to town, but the general design was similar. At the approach to the town rumble strips were installed, followed by a gate situation created by trees and in one case by a road narrowing. Within the town (from gate to gate) separate cycle tracks and pavements were provided on both sides of the road; pinch points and, chicanes served as speed-reducing measures. In addition, trees were planted.

Impacts on demand
Change in traffic volume after EMIL project



Vinderup

Skaerbaek

Ugerlose

Motor Vehicle

3%

-11%

29%

Pedestrian and Cycle

over 20%

over 20%

over - 30%

A reduction in motor vehicle traffic was achieved only in Skaerbaek, with it increases in Ugerlose and Vinderup in no special reasons were given.

The speed limit on the through roads in all three towns was 60 km/h before the project started, which is high for a built-up area. The ‘after’ research was carried out when the speed limit was still 60 km/h but it was later reduced to 50 km/h in all three towns. Automatic speed measurements showed speeds to have decreased slightly in all three towns by between five and eight km/h. The delays caused to motor vehicles by the speed-reducing measures were calculated to be between seven and ten seconds per km.

Impacts on supply

Road capacity for vehicle use was reduced by traffic calming measures such as road narrowing and pinch points and also by providing cycle lane.

Contribution to objectives

Objectives

Comment

Efficiency

The reduction of road capacity reduced efficiency slightly.

Liveable streets

Town inhabitants felt that after the implementation the number and speed of cars was more acceptable and the nuisance from parked cars had become smaller.

Protection of the environment

Noise was found to be hardly changed at all. However, near the rumble strips noise increased by 3 to 4 dB(A) when they were new; this should be increased by a further 5dB(A) because the noise contains a considerable element of impulsive sounds, to 8dB(A). Air pollution was found to have hardly changed.

Equity and social inclusion

No assessment of equity impacts has been made.

Safety

On the interview survey for pedestrians and cyclists, the average figures for all three towns were as follows: 'feeling insecure' before 64%, after 29%, 'feeling secure' before 31%, after 65%.

Economic growth

The results of observations made along the roads showed that in all three towns the number of people on the main streets had increased considerably by between 15% and 52%. The number of their activities (e.g. shopping, playing, relaxing) had also increased by between 16% and 50%.

Finance

No evidence regarding costs.


San Diego, US Context

Ewing (1999) reports the effective and ineffective choices of traffic calming measures in San Diego.

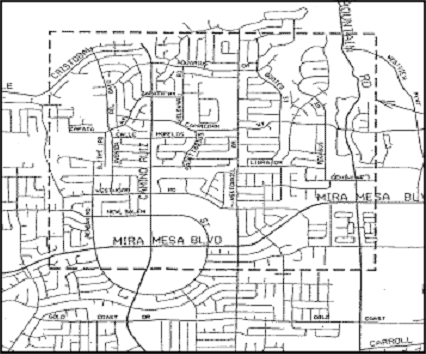

Street network inviting through-traffic at Mira Mesa in San Diego

Figure1 Street network inviting through-traffic at Mira Mesa in San Diego (Ewing, 1999)

Vehicle users pass Mira Mesa streets to travel between inland and coastal communities (see Figure 1). There are few east-west arterials in that part of San Diego, and those few had become congested enough to cause vehicle users to divert to alternative routes. Five residential collectors had become problematic, affected not only by high traffic volumes but also by the excessive speeds that often accompany through traffic.

At the request of the Mira Mesa Community Planning Committee, the city first tried peak-hour turn restrictions to discourage shortcutting. The restrictions did not work. Vehicle users found ways to circumvent them through U-turns and other manoeuvres. The city then installed speed humps. The hump profile chosen was the 12-foot parabolic hump.

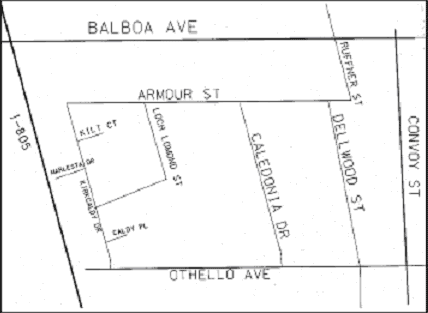

Street network inviting through-traffic at Royal Highlands in San Diego

Figure2 Street network inviting through-traffic at Royal Highlands in San Diego (Ewing, 1999)

The Royal Highlands neighbourhood, sandwiched between two arterials and a freeway in San Diego, also had a through traffic problem (see Figure 2). Traffic would filter through the neighbourhood on one of four local residential streets. The first attempt at traffic calming was the installation of 12-foot speed humps. While closely spaced and severe in profile, the humps were not sufficient to counter the strong incentive to cut through the neighbourhood. Then further traffic calming, full road closures, was also implemented.

Impacts on demand

The humps in Mira Mesa were successful in the limited sense of reducing through traffic on four collectors and reducing vehicle speeds on all five (Table 1). However, they were not successful in a more general sense because new problems were created. Fire response times were degraded by the treatment of Capicorn Way. Traffic was diverted from collectors to parallel local streets that were less well designed to deal with it. The one local street for which before-and-after data were available experienced a 34 percent rise in traffic volume and a nine percent increase in its 85th percentile speed.

Table1: Traffic on collectors before and after speed hump installation in Mira Mesa (Ewing, 1999)

Traffic Calmed Collector

Daily Volume

(Vehicles per day)

85th Percentile Speed

(miles per hour)



Before

After

Before

After

Aquarius Drive

5,940

3,250

38

25

Avenida Del Gato

2,960

1,250

38

25

Bootes Street

5,710

4,660

36

30

Capicorn Way (Camino Ruiz-Orion Way)

6,870

6,860

34

25

Capicorn Way (Orion Way-Camino Ruiz)

11,540

11,040

36

25

Libra Drive

5,580

2,660

38

27

The main effect of the humps of the first attempt in the Royal Highlands was to divert traffic to the local street closest to the neighbourhood’s northern entry point, Dellwood Street. The Dellwood route offered the fewest humps end-to-end. However, the second attempt was more successful. After closing the northern entry point at Armour Street, traffic volumes on all local streets fell below their initial levels. The neighbourhood now has speed controls (which did not solve the through traffic problem) and a volume control (which apparently was effective).

Table2 Traffic before humps, after humps, and after closure in Royal Highlands (Ewing, 1999)

Street



Vehicles Per Day




Before Speed Humps

After Speed Humps

After Street Closure

Armour Street

525

350

280

Caledonia Street

215

240

210

Dellwood Street

1,065

1,260

370

Kirkcaldy Street

1,350

820

260

Lochlomond Street

140

180

90

Total traffic within neighborhood

3,295

2,850

1,210

% change in total traffic

-

-14

-63


Impacts on supply

In the case of Royal Highlands, road capacity was reduced by half due to the closures implemented in Armour Street.

Contribution to objectives

Objectives

Comment

Efficiency

The reduction of road capacity and rerouting reduced efficiency.

Liveable streets

A reduction in vehicle traffic should have improved liveability.

Protection of the environment

No estimation has been made, but the reduction in vehicle traffic should have reduced air and noise pollution.

Equity and social inclusion

No assessment of equity impacts has been made.

Safety

Decreased speeds will have decreased a number of accidents and improved safety for pedestrians, cyclists and cars travelling next to each other.

Economic growth

No analysis has been conducted.

Finance

No evidence regarding costs.


Local towns, UK Context

The County Surveyors Society (1994) reviewed 152 case studies and provided more detail of the 85 case studies of traffic calming implemented in the late 1980’s and early 1990’s in the UK. The numerical analysis which follows draws on all the 152 case studies submitted.

Just over half the schemes (56%) were located in urban residential area with 29% occurring on main roads in rural locations and the remaining 15% in town centre areas.

74% of the schemes were aimed at reducing speed, with 64% aimed at accident reduction, and 36% at reducing the volume of through traffic. Nearly every scheme was intended to address two of these problems and many were aimed at all three. Environmental improvements were sought in 17% of the schemes, fairly evenly spread over the three types of location.

76% of the schemes used more than one type of speed controlling device. Some schemes involved a whole range of different types of measures. Road humps in one form or another were included in 66% of the schemes submitted and were by far the most commonly used technique. The next most popular technique was some form of carriageway narrowing, with 41% of schemes using this method. Chicanes featured in 26% of schemes and 17% of the schemes included refuges, mini roundabouts, road markings and signs. Other relatively commonly used measures were gateways (10%), table junctions (9%), coloured surfacing and rumble strips (6%).

Impacts on demand

The following table gives example results in the case studies for ‘Town Centre Areas’.

Location

Traffic Volume

 (veh/day)

Speed

 (mph)

Accidents

(pia pa)

Cost

(£k)



Before

After

Before

After

Before

After



West Sussex Horsham

-

-

35

15

3

0

2,300

Northamtonshire Rushden

2,540

2,080

24

17

3.7

2

230

Herfordshire Borehamwood

18,800

16,500

26

20

15

8

1,200

Cambrigdeshire Eaton Socon

10,700

8,900

38

32

19

4

130

Cornwall Saltash

9,000

7,900

32

17

6

1

230

Devon Bamstaple

1,800

4,000

23

11

0.25

0.25

3

Essex Southend on Sea

-

-

28

26

28

9

181

Kent Gillingham

5,000

5,000

-

-

1.3

0.7

18

Kent Rochester

8,000

4,000

35

25

2

0

18.5

Isle of Wight Ryde

850

815

29

18

0

0

14.5

Warwickshire Leamington Spa

15,600

17,500

-

20

3

5

35

Warwickshire Rugby

7,100

5,400

50

25

2

0

69

Note: Comparative subjective comments are given regarding effectiveness. These are based on the following indicative criteria which may differ from individual authorities’ own criteria options:

Effectiveness should be assessed against the scheme objectives which can vary greatly. However, the effectiveness of the measures employed seems to vary considerably and it is not certain whether this is the result of differences in design or of location. From the schemes sent in was in not possible to identify any one specific measures as more or less effective. Effectiveness, it seems, will depend on the way measures are fitted to local conditions and on the combination of measures used (County Surveyors Society, 1994). Single measures were judged as of moderate cost of £3,000-£10,000, reasonable of £10,000-£20,000 and expensive over £20,000. For several measures moderate cost were £5,000-£50,000/km, reasonable were £50,000-£100,000/km and expensive over £100,000/km.

Impacts on supply

Most schemes reduced road capacity for vehicle use and also limited vehicle speed.

Contribution to objectives

Objectives

Comment

Efficiency

The reduction of road capacity and rerouting reduced efficiency.

Liveable streets

No analysis has been conducted, but a reduction in vehicle traffic should have improved liveability.

Protection of the environment

No estimation has been made, but a reduction in vehicle traffic should have reduced air and noise pollution.

Equity and social inclusion

No assessment of equity impacts has been made.

Safety

In most town centres, accidents reduced by a significant or considerable amount.

Economic growth

No analysis has been conducted.

Finance

Costs of each measure are given on the table.

Gaps and weaknesses

There is limited evidence on impacts on public transport, especially bus services. If journey times on a bus route passing through traffic calmed streets are increased significantly because of the implemented measures, this will reduce the attractiveness of the service.
